ASUS ROG G22CH-1370KF065W Intel® Core™ i7 i7-13700KF 32 GB DDR5-SDRAM 2 TB SSD NVIDIA GeForce RTX 4070 Windows 11 Home SFF PC Black, Grey
SKU
G22CH-1370KF065W
Login for pricing
Out Of Stock - Contact for availability
Intel Core i7-13700KF (30MB Cache), 32GB DDR5-SDRAM, 2000GB SSD, NVIDIA GeForce RTX 4070 (12GB GDDR6X), LAN, WLAN, Bluetooth, Windows 11 Home 64-bit
- Windows 11 Home 64-bit
- Intel Core i7-13700KF (30MB Cache)
- NVIDIA GeForce RTX 4070 (12GB GDDR6X)
- 32GB DDR5-SDRAM (2 x 16) & 2000GB SSD
Category: PCs/Workstations
| SKU | G22CH-1370KF065W |
|---|---|
| EAN | 0197105148659 |
| Manufacturer | ASUS |
| Availability | No |
| Product Family | ROG |
| PDF URLs |
View PDF |

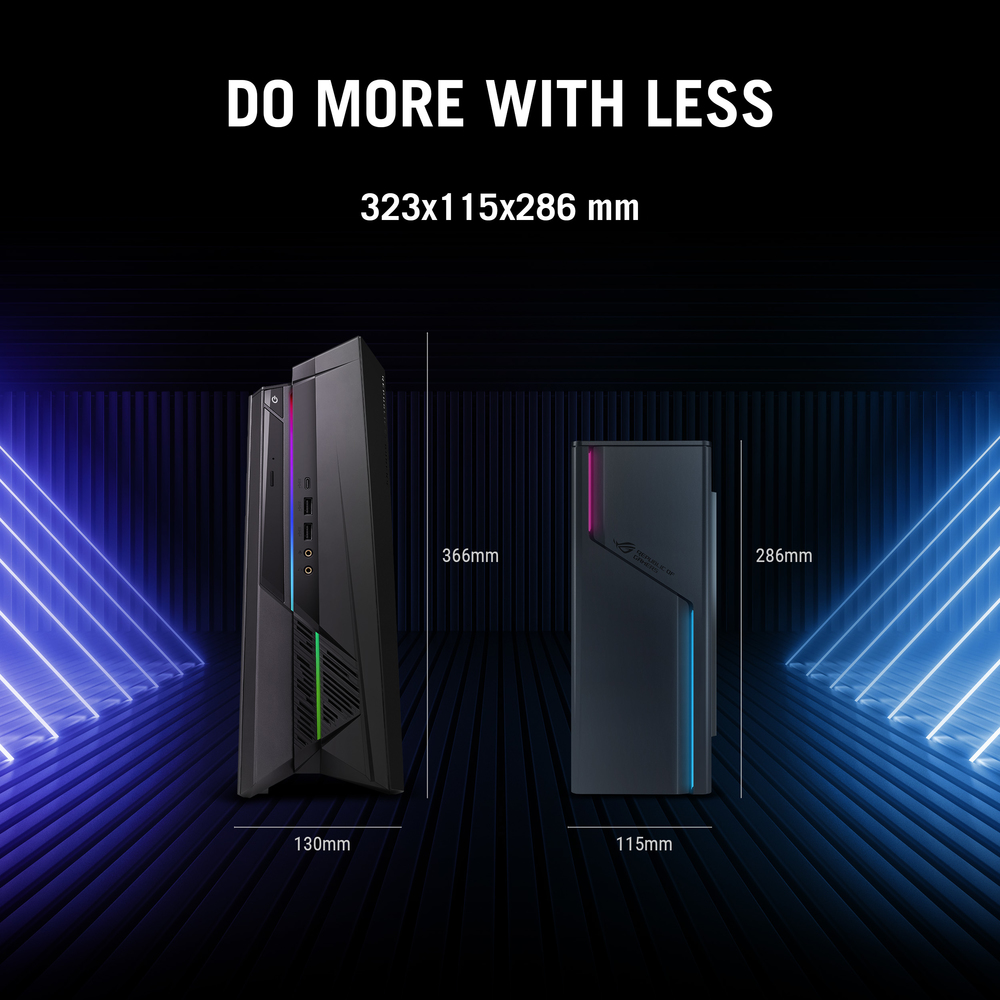

Do more with less
At ROG, we’re never afraid to push the boundaries of PC design or performance, and the G22 is the latest example of our pursuit of excellence. The G22 is nearly 40% smaller by volume than our previous small form factor G21 Huracan, despite packing much more powerful hardware. Innovation never rests, and neither does ROG.

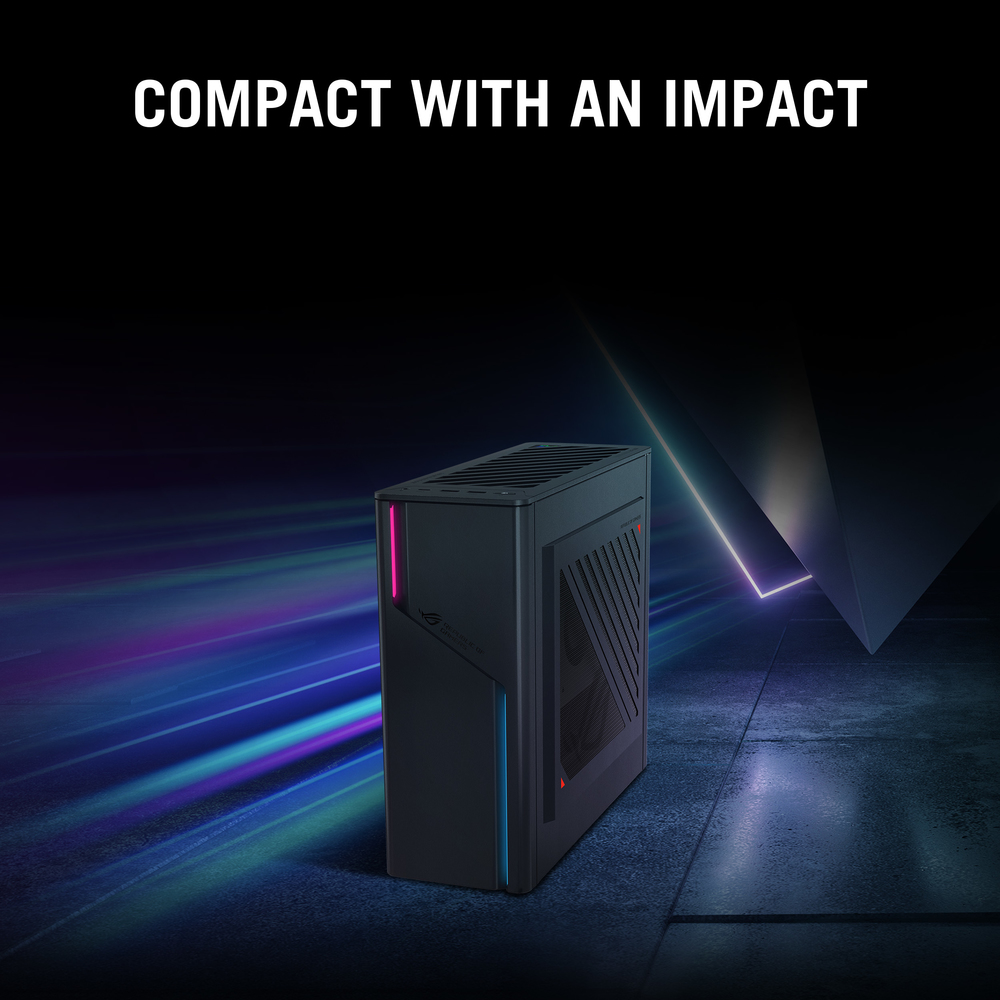

Compact with an Impact
Take your Windows 11 to the next level with the compact power on display from the ROG G22CH. Featuring an Intel® Core™ i7-13700KF Processor and paired with an NVIDIA® GeForce RTX™ 4070 graphics card, the G22CH can handle the latest and greatest games. Stream, communicate, and record your gameplay with ease thanks to its 32GB of 4800MHz DDR5 RAM. With the ROG G22CH, great power doesn’t need to come with a large footprint.

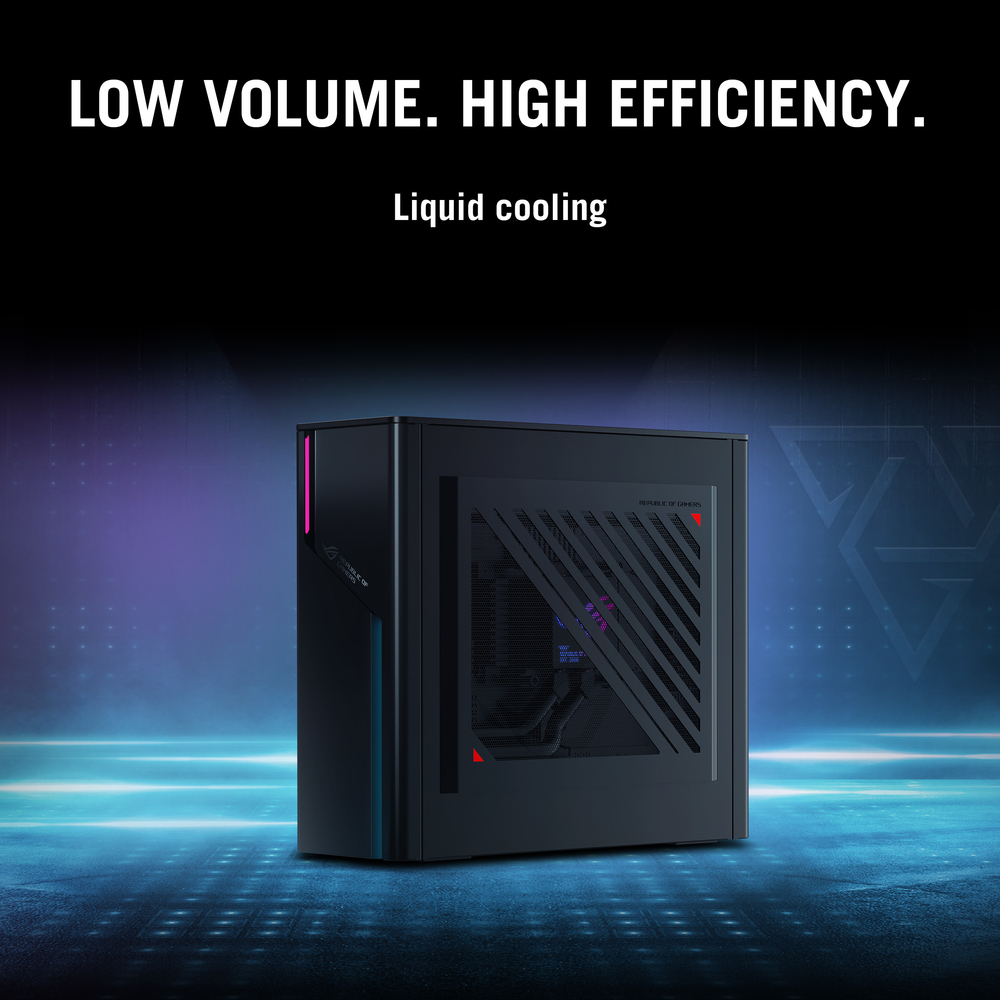

Low volume. High efficiency.
Cooling is key in any small form factor case, so the ROG G22CH-1370KF065W has a custom liquid cooler for the CPU. It keeps the processor running smoothly, without excessive fan noise, despite the 10L chassis size.

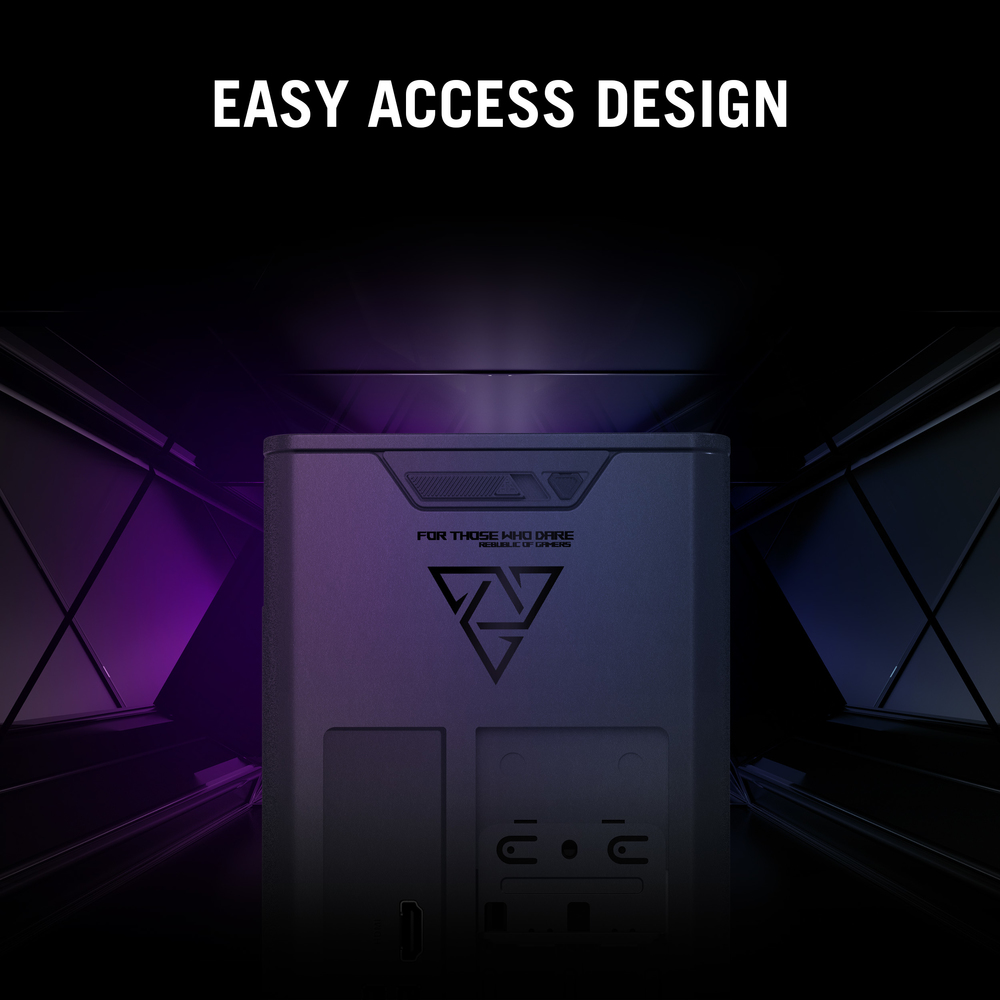

Easy access design and Modern design
As a compact machine, the ROG G22CH can happily sit on even the smallest desks. The chassis was designed with personalization in mind, with multiple side panel options and full Aura Sync RGB compatibility.
Proper maintenance is key to the smooth running of any equipment, so we made sure to give the G22CH a tool-free design. When you need to clean dust out of the chassis or upgrade the components, you’re able to get into the internals quickly without turning a single screw.

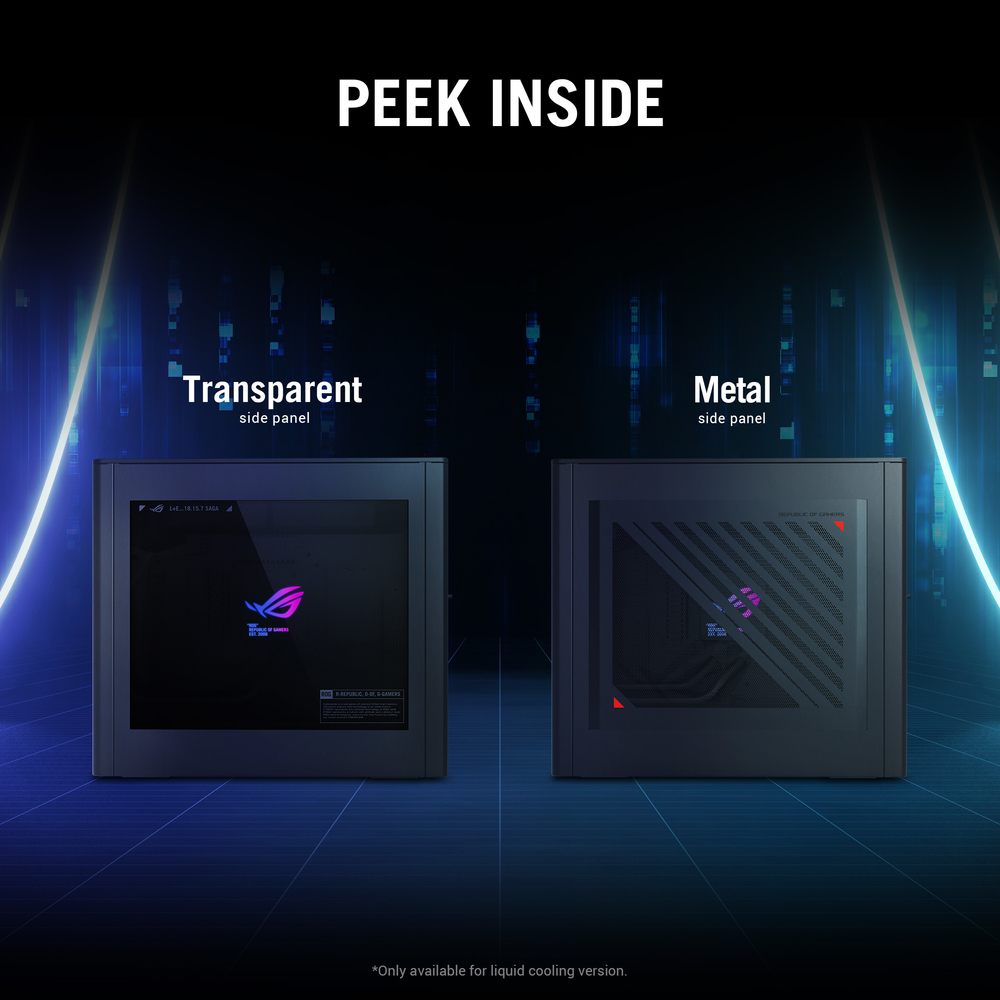

Peek inside
The ROG G22CH is a work of art, so we’ve given you some flexibility on how you want to show it off. On this liquid cooled variant, a tempered glass side panel is available to expose the internals of this gorgeous system.
Restrained brilliance
For the first time on one of our gaming desktops, the G22CH uses indirect RGB lighting across the front panel. Paired with lighting control available via Aura Sync, you can customise exactly how your machine feels, no matter your mood.
Splendid sound
Revel in the richness of Dolby Atmos audio support, recreating soundscapes exactly as the artists intended. ROG also supports Two-Way AI Noise-Cancellation technology, keeping your communications clear no matter what’s going on in the background.

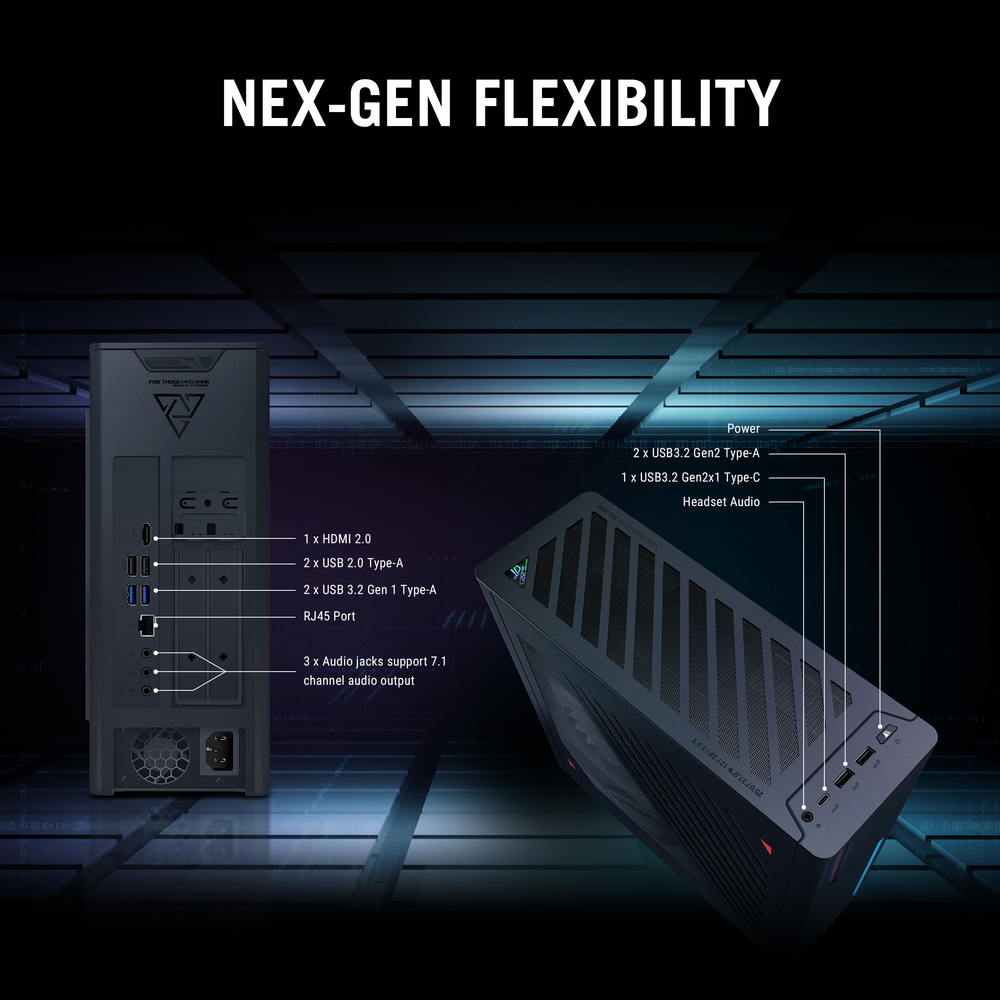

Nex-gen flexibility
Support all of your peripherals with the plentiful ports on display for the G22CH. Rear I/O includes HDMI 2.0a, a dedicated ethernet port, 4 USB Type-A ports, and support for 7.1 channel surround sound audio. The front panel features an audio combo jack, 2 additional USB Type-A ports, and a USB-Type C port for even more flexibility.
ROG G22CH Gaming Desktop
Condensed size. Concentrated power.
Condensed size. Concentrated power.
| Processor | |
|---|---|
| Processor generation | 13th gen Intel® Core™ i7 |
| Bus type | DMI4 |
| Processor cache | 30 MB |
| Processor model | i7-13700KF |
| Processor manufacturer | Intel |
| Processor boost frequency | 5.4 GHz |
| Processor cores | 16 |
| Processor family | Intel® Core™ i7 |
| Performance cores | 8 |
| Efficient cores | 8 |
| Performance-core boost frequency | 5.3 GHz |
| Performance-core base frequency | 3.4 GHz |
| Efficient-core boost frequency | 4.2 GHz |
| Efficient-core base frequency | 2.5 GHz |
| Memory | |
| Memory layout (slots x size) | 2 x 16 GB |
| Internal memory | 32 GB |
| Maximum internal memory | 32 GB |
| Memory slots | 2x SO-DIMM |
| Internal memory type | DDR5-SDRAM |
| Storage | |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Optical drive type | No |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 1 TB |
| Number of SSDs installed | 2 |
| Total storage capacity | 2 TB |
| SSD form factor | M.2 |
| Total SSDs capacity | 2 TB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | Yes |
| Graphics card HDMI ports quantity | 1 |
| Graphics card DisplayPorts quantity | 3 |
| Discrete graphics card memory | 12 GB |
| On-board graphics card | No |
| Discrete graphics card model | NVIDIA GeForce RTX 4070 |
| Discrete graphics memory type | GDDR6X |
| On-board graphics card model | Not available |
| Discrete GPU manufacturer | NVIDIA |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI version | 2.0a |
| USB 2.0 ports quantity | 2 |
| Line-out | Yes |
| Line-in | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Technical details | |
| Product type | PC |
| Product colour | Black, Grey |
| Chassis type | SFF |
| Audio system | High Definition Audio |
| Placement supported | Vertical |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel B760 |
| Sustainability compliance | Yes |
| Compliance certificates | REACH, RoHS |
| Design | |
| Product colour | Black, Grey |
| Chassis type | SFF |
| Placement supported | Vertical |
| Viewing window | Yes |
| Colour name | Extreme Dark Gray |
| Country of origin | China |
| Performance | |
|---|---|
| Market positioning | Gaming |
| Product type | PC |
| Audio system | High Definition Audio |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel B760 |
| Commodity Classification Automated Tracking System (CCATS) | 8471500000 |
| Software | |
| Operating system architecture | 64-bit |
| Trial software | 1-month trial for new Microsoft 365 customers. |
| Operating system installed | Windows 11 Home |
| Processor special features | |
| CPU configuration (max) | 1 |
| Power | |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply | 600 W |
| Certificates | |
| Compliance certificates | REACH, RoHS |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Package width | 480 mm |
| Package depth | 240 mm |
| Package height | 562 mm |
| Width | 115 mm |
| Depth | 323 mm |
| Height | 286.9 mm |
| Package weight | 13.6 kg |
| Weight | 8.4 kg |
| Packaging data | |
| Package width | 480 mm |
| Package depth | 240 mm |
| Package height | 562 mm |
| Package weight | 13.6 kg |
| Packaging content | |
| Display included | No |
| Features | |
| Country of origin | China |
| Other features | |
| On-board graphics card | No |
| Processor manufacturer | Intel |
| Country of origin | China |
| Commodity Classification Automated Tracking System (CCATS) | 8471500000 |
